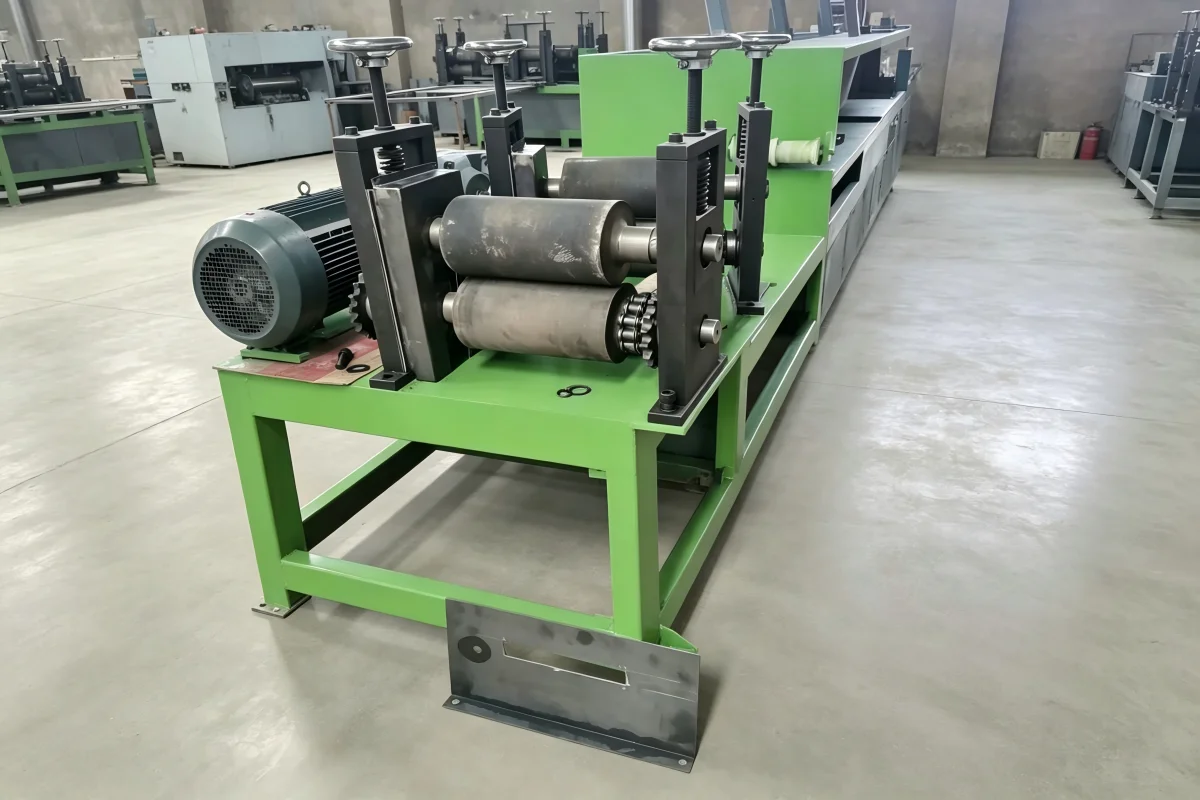

Product Overview
The PP Stretched Strip Production Line is designed for high-volume production of polypropylene strips used in geogrid manufacturing.
6-meter working width, adjustable grid spacing 50-200mm, 24 heads at 15kHz 2600W each.
140mm screw / 30:1 L/D / 5-8 tons/24h / 10-150 m/min / 75kW motor
The PP Stretched Strip Production Line is designed for high-volume production of polypropylene strips used in geogrid manufacturing.
6-meter working width, adjustable grid spacing 50-200mm, 24 heads at 15kHz 2600W each.
Key parameters of the 24-head geogrid welding line
| Parameter | Specification |
|---|---|
| Screw diameter | 140 mm |
| L/D ratio | 30:1 |
| Screw material | 38CrMoAlA, nitrided 0.5-0.7mm, HV≥740 |
| Heating zones | 6-zone ceramic, 50 kW total |
| Extrusion motor | 75 kW |
| Output capacity | 5-8 tons/24h |
| Gearbox | ZLYJ280-16 |
| Metering pump | 200cc, drive motor 7.5 kW |
| Line speed | 10-150 m/min |
| Strip width range | 10-30 mm |

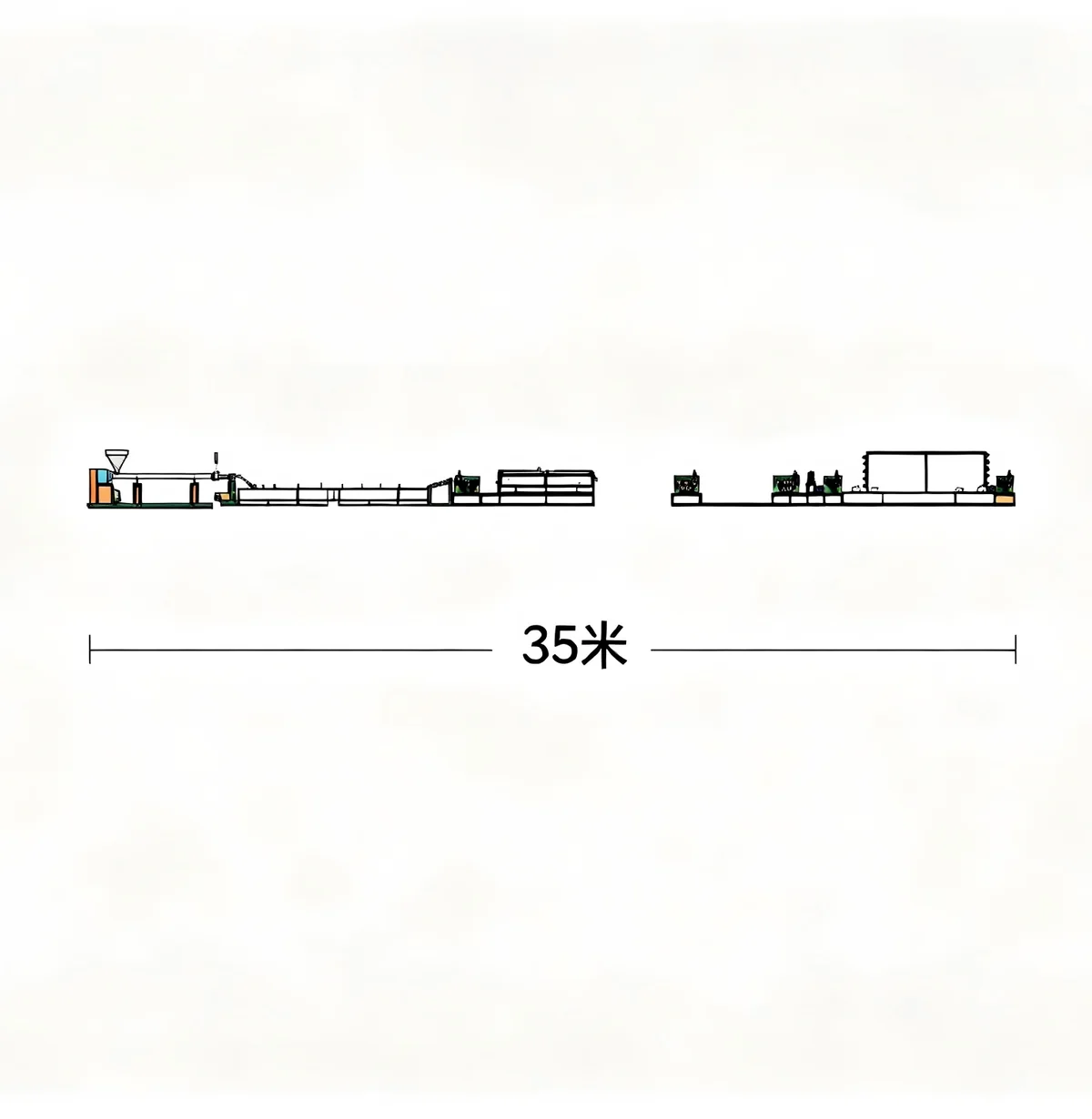

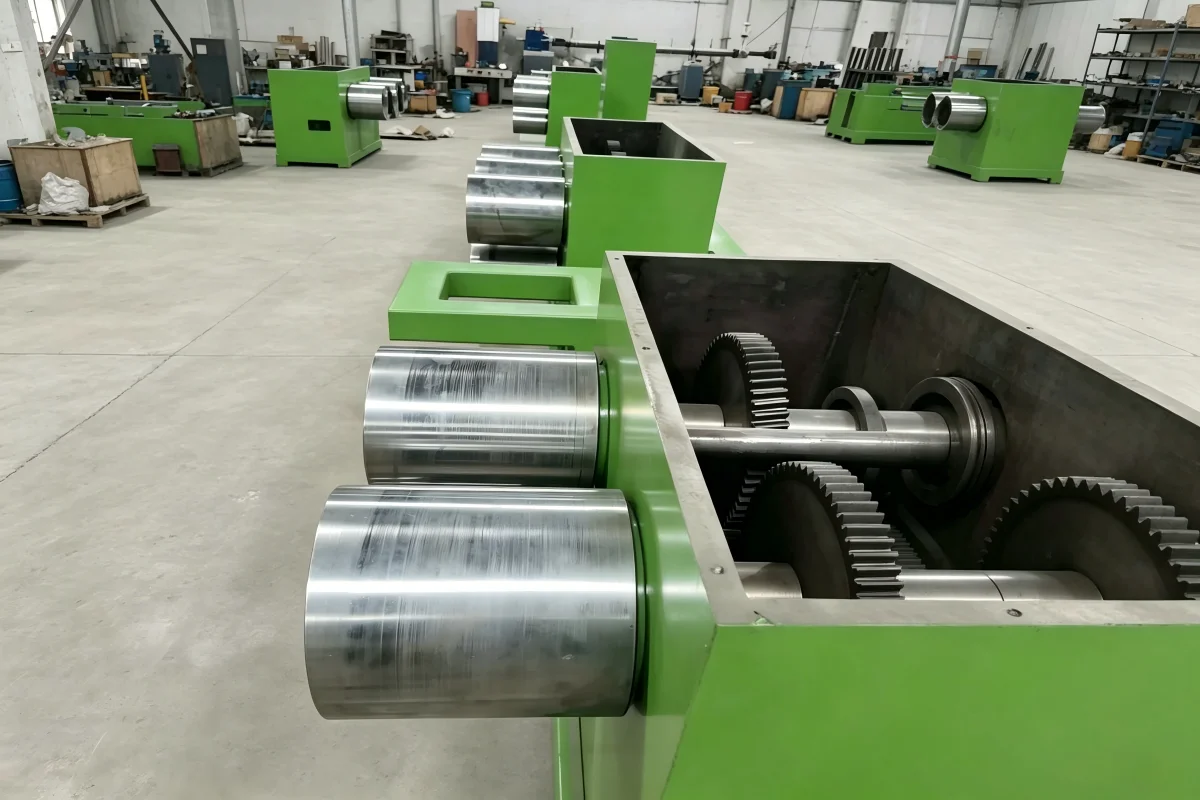

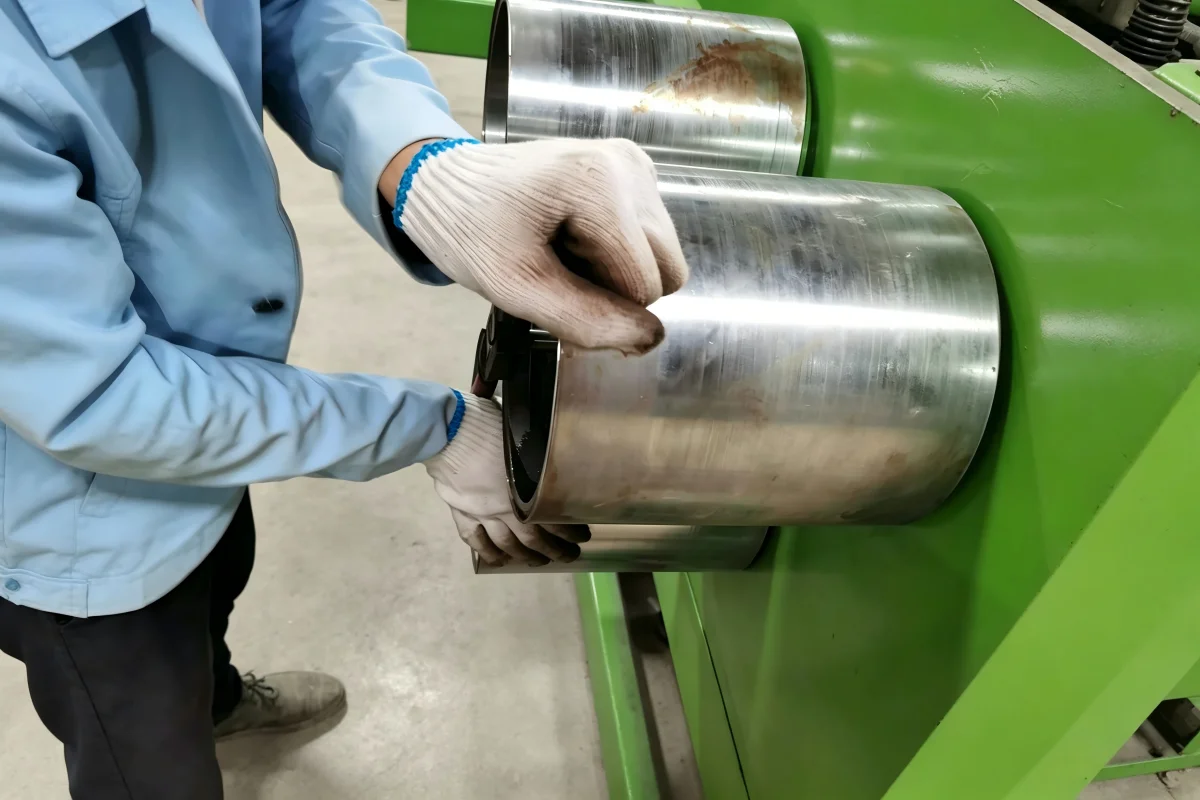

See the PP strip extrusion line in detail
See the PP strip extrusion line in action
Why the PP strip extrusion line is the industry choice
24 heads for high-speed production. Each head independently controlled.
Mitsubishi PLC ensures accurate positioning and repeatable weld quality.
Supports steel-plastic composite strips and PP strips.
5,000-15,000 m2/day with node strength at 90% of parent material.
Ultrasonic heating consumes less energy than thermal welding.
38CrMoAlA nitrided screw with HV≥740 hardness ensures long service life. ZLYJ280-16 gearbox for reliable power transmission.
Where the PP strip extrusion line is used
Reinforcing weak soils for road and railway embankments.
Preventing landslides and erosion on steep slopes.
Base reinforcement for highways, railways, and ports.
