Product Overview
The 24-Head Automatic Geogrid Welding Line is designed for high-volume production of welded geogrids.
6-meter working width, adjustable grid spacing 50-200mm, 24 heads at 15kHz 2600W each.
6m working width / 5,000-15,000 m2/day / 24 heads / 15kHz 2600W each
The 24-Head Automatic Geogrid Welding Line is designed for high-volume production of welded geogrids.
6-meter working width, adjustable grid spacing 50-200mm, 24 heads at 15kHz 2600W each.
Key parameters of the 24-head geogrid welding line
| Parameter | Specification |
|---|---|
| Number of ultrasonic heads | 24 (customizable: 12 / 32 / 48 heads) |
| Ultrasonic power per head | 2600W |
| Frequency | 15kHz (20kHz optional) |
| Working width | 6,000 mm |
| Weld grid spacing | 50-200 mm (adjustable) |
| Output capacity | 5,000-15,000 m2/day |
| Compatible materials | Steel-plastic composite, PP |
| Welding method | Ultrasonic vibration welding |
| Control system | Mitsubishi PLC + Delta inverter |
| Power supply | 380V / 50Hz 3-phase |

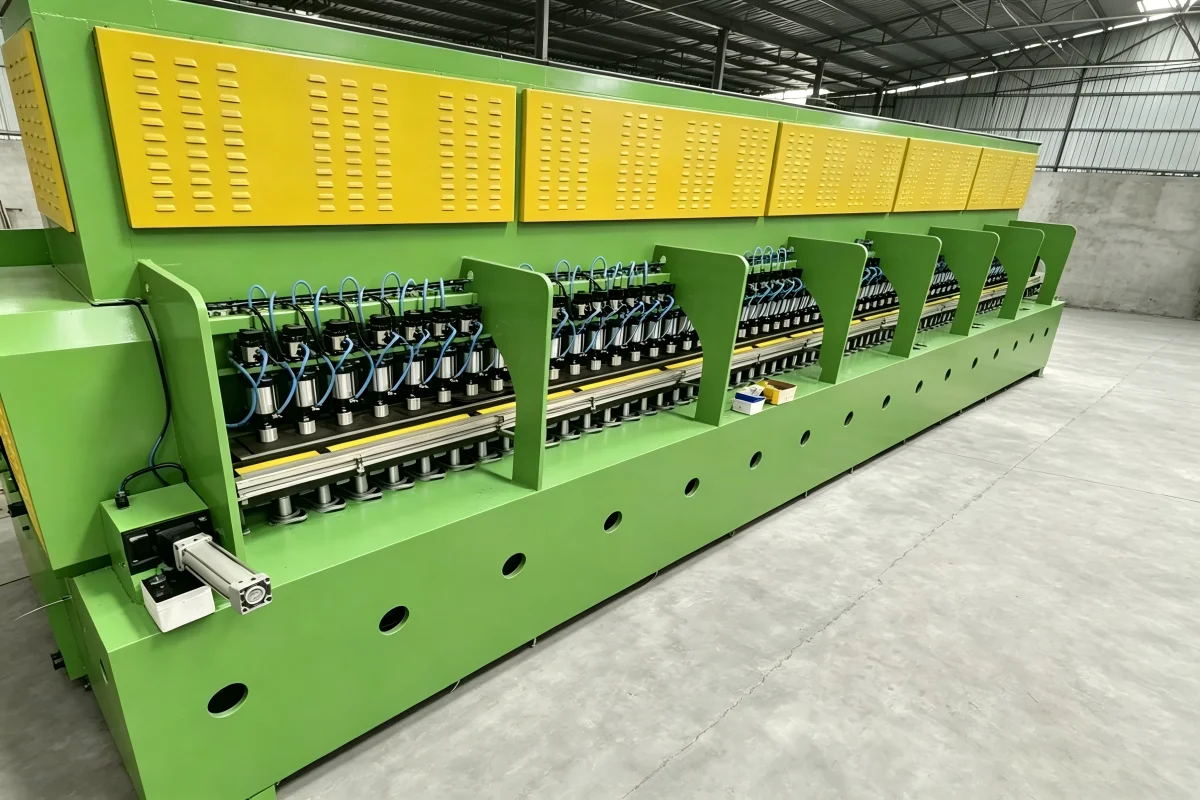

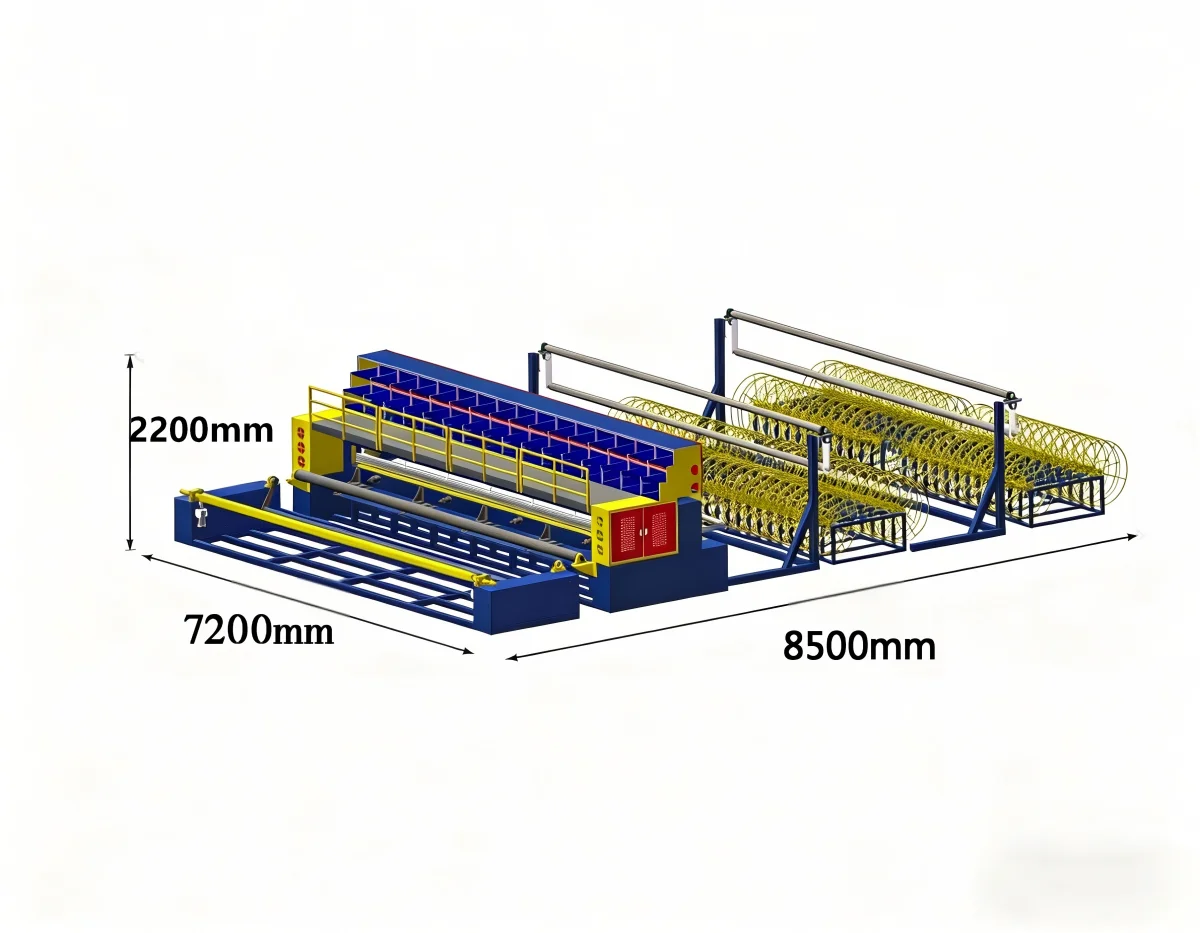

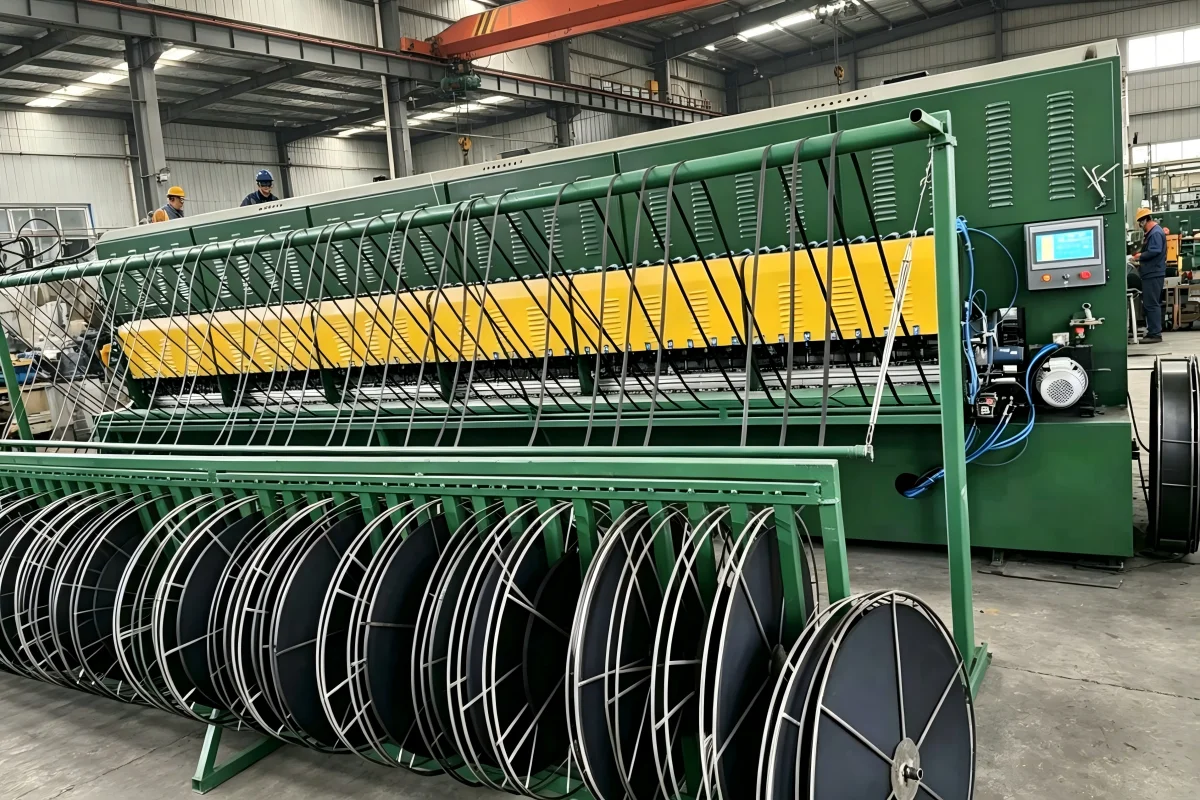

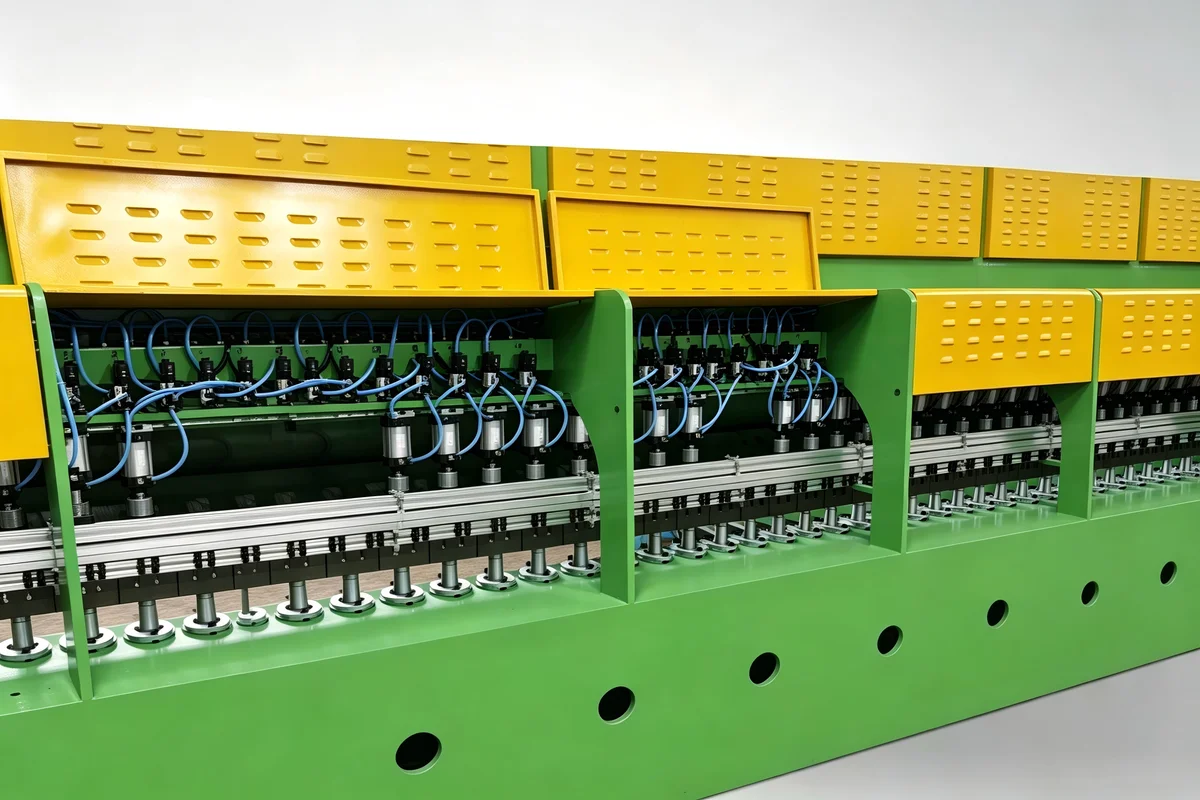

See the 24-head geogrid welding line in detail

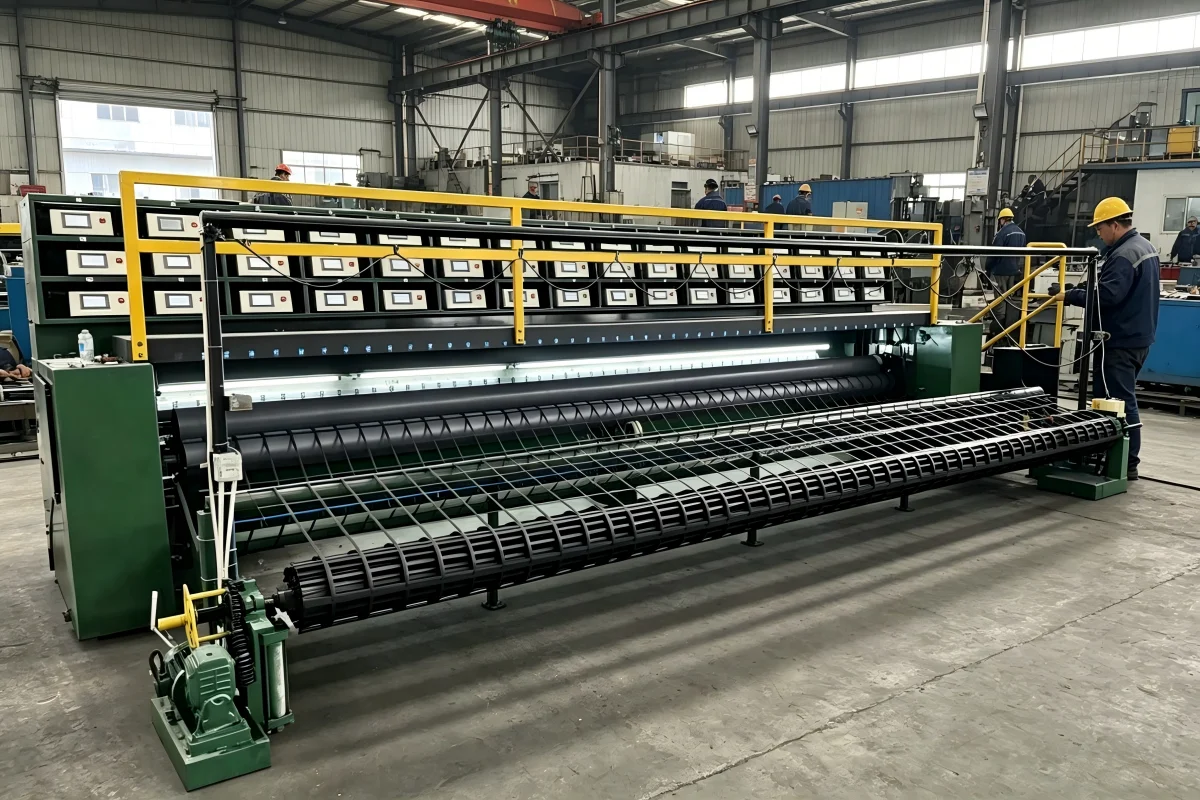

See the 24-head geogrid welding line in action
Why the 24-head welding line is the industry choice
24 heads for high-speed production. Each head independently controlled.
Mitsubishi PLC ensures accurate positioning and repeatable weld quality.
Supports steel-plastic composite strips and PP strips.
5,000-15,000 m2/day with node strength at 90% of parent material.
Ultrasonic heating consumes less energy than thermal welding.

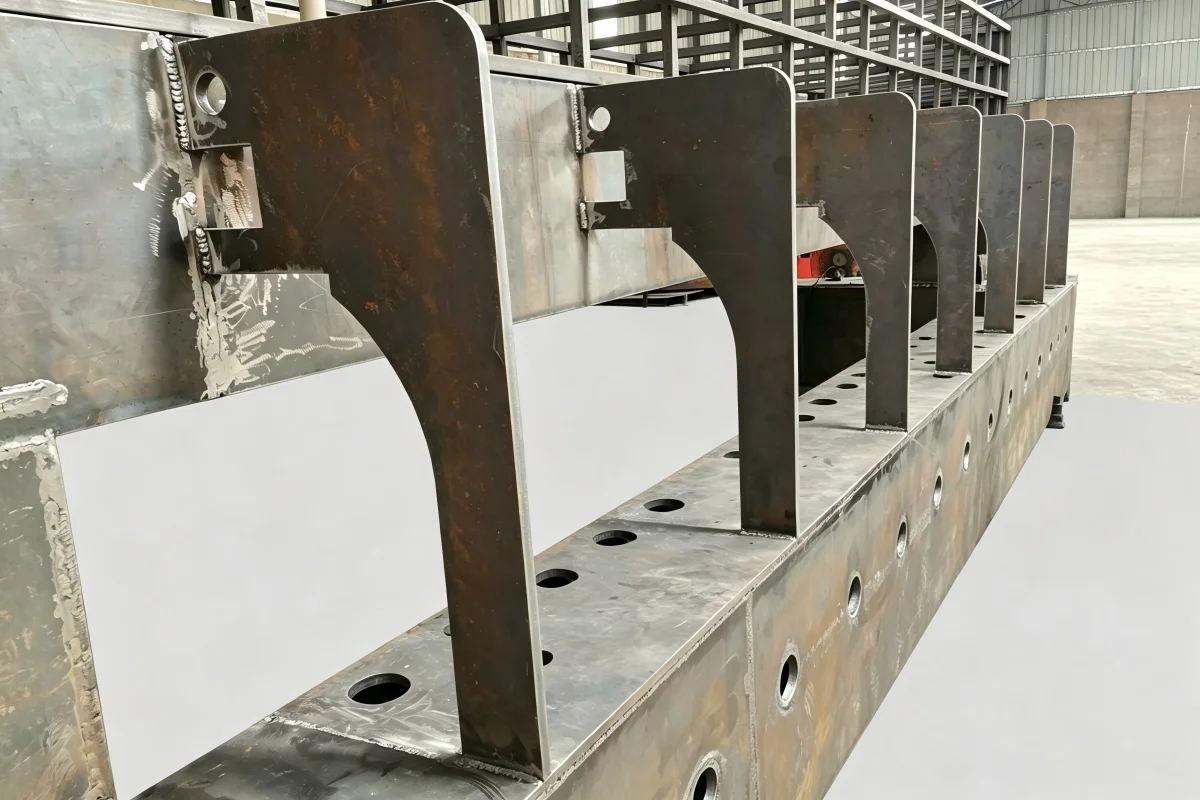

Q345 steel gantry, Hiwin guides, AirTac pneumatics for long-term reliability.
Where the 24-head geogrid welding line is used
Reinforcing weak soils for road and railway embankments.
Preventing landslides and erosion on steep slopes.
Base reinforcement for highways, railways, and ports.
Contact us for a customized quotation on the 24-head welding line.
