Product Overview
The Biaxial Injection Geogrid Line is designed for high-volume production of welded geogrids.
6-meter working width, adjustable grid spacing 50-200mm, 24 heads at 15kHz Servo-controlled each.
43 injection heads / 6m working width / 5,000-8,000 m2/day / Multi-material
The Biaxial Injection Geogrid Line is designed for high-volume production of welded geogrids.
6-meter working width, adjustable grid spacing 50-200mm, 24 heads at 15kHz Servo-controlled each.
Key parameters of the 24-head geogrid welding line
| Parameter | Specification |
|---|---|
| Number of injection heads | 43 |
| Injection force per head | Servo-controlled |
| Node pitch | Customizable (programmable) |
| Working width | 6,000 mm |
| Injection method | Mechanical + fusion locking |
| Output capacity | 5,000-8,000 m2/day |
| Compatible materials | Steel-plastic, PP, PET |
| Bond type | Mechanical + fusion |
| Control system | Servo injection + PLC |
| Status | Under development |
| Power supply | 380V / 50Hz 3-phase |

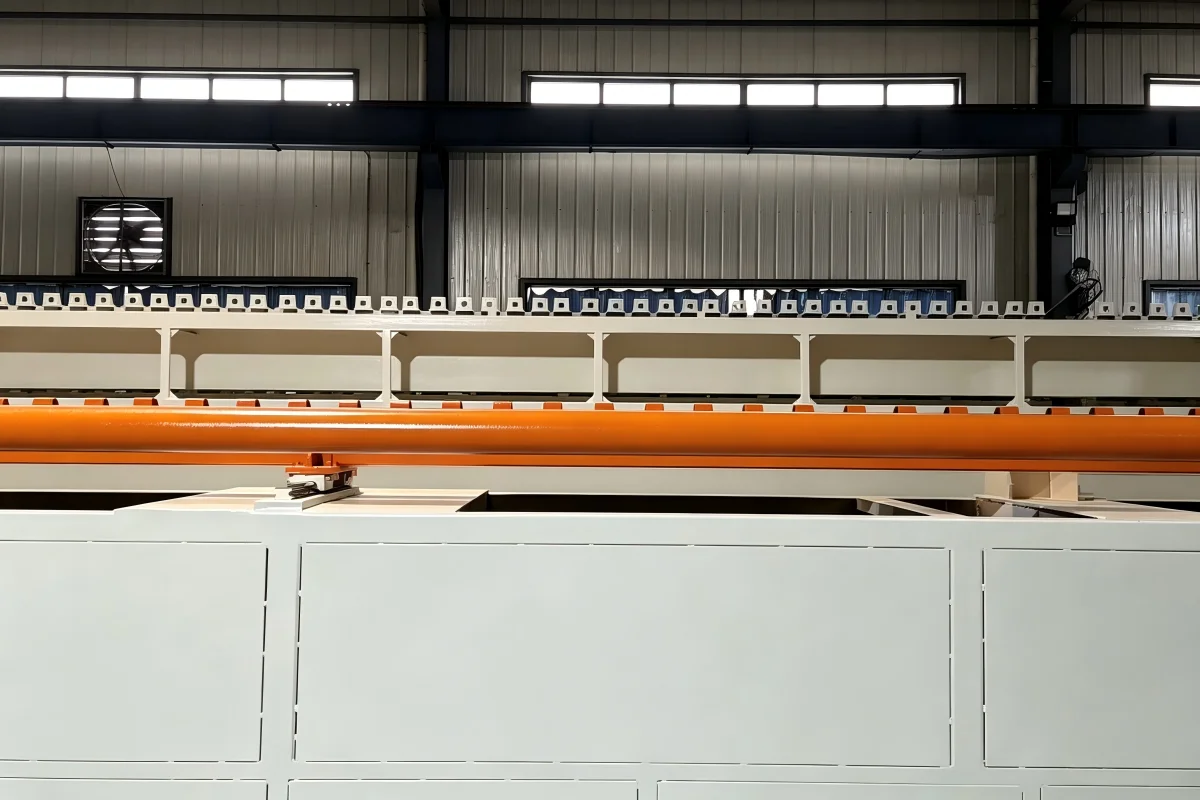

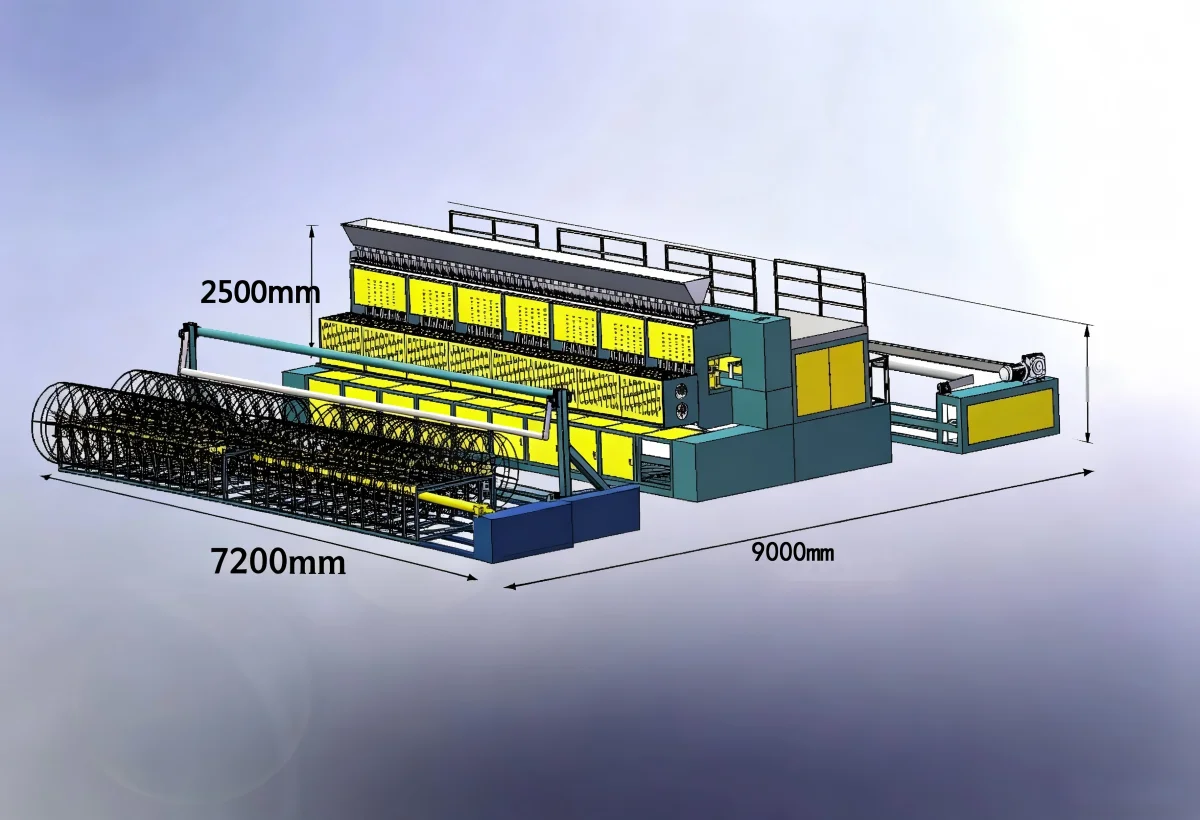

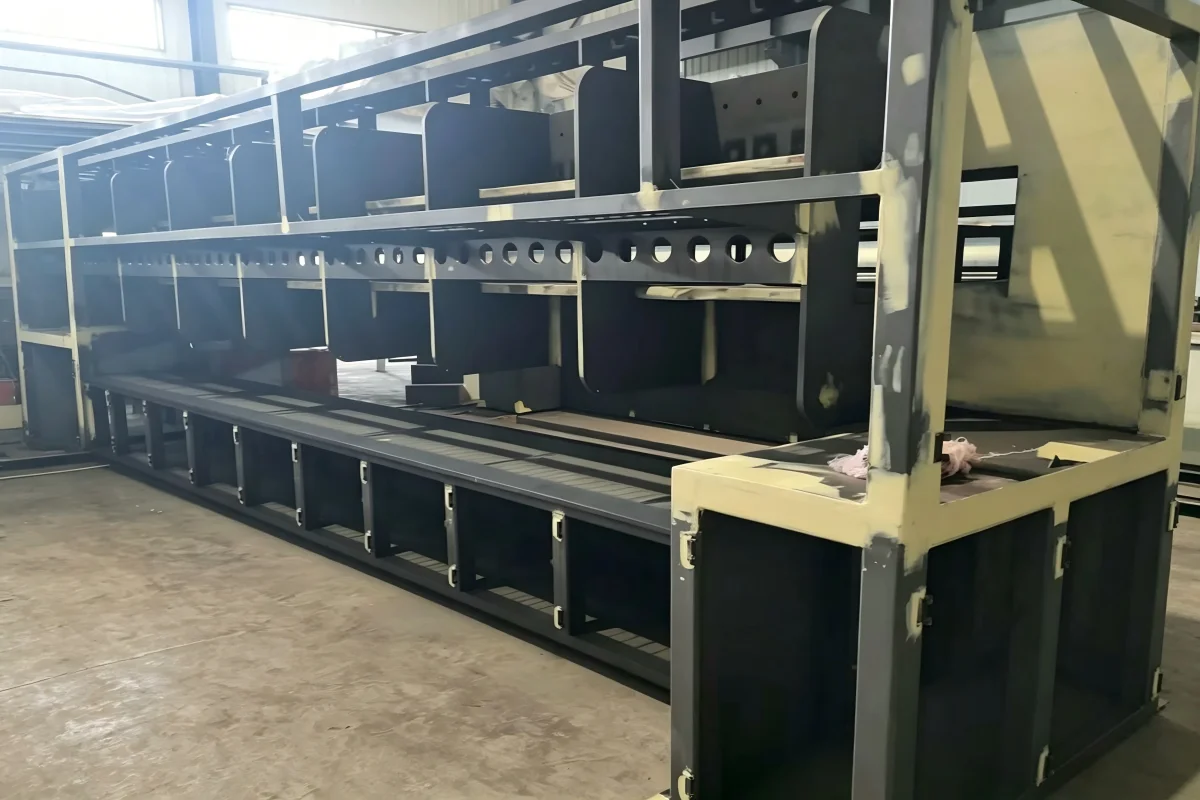

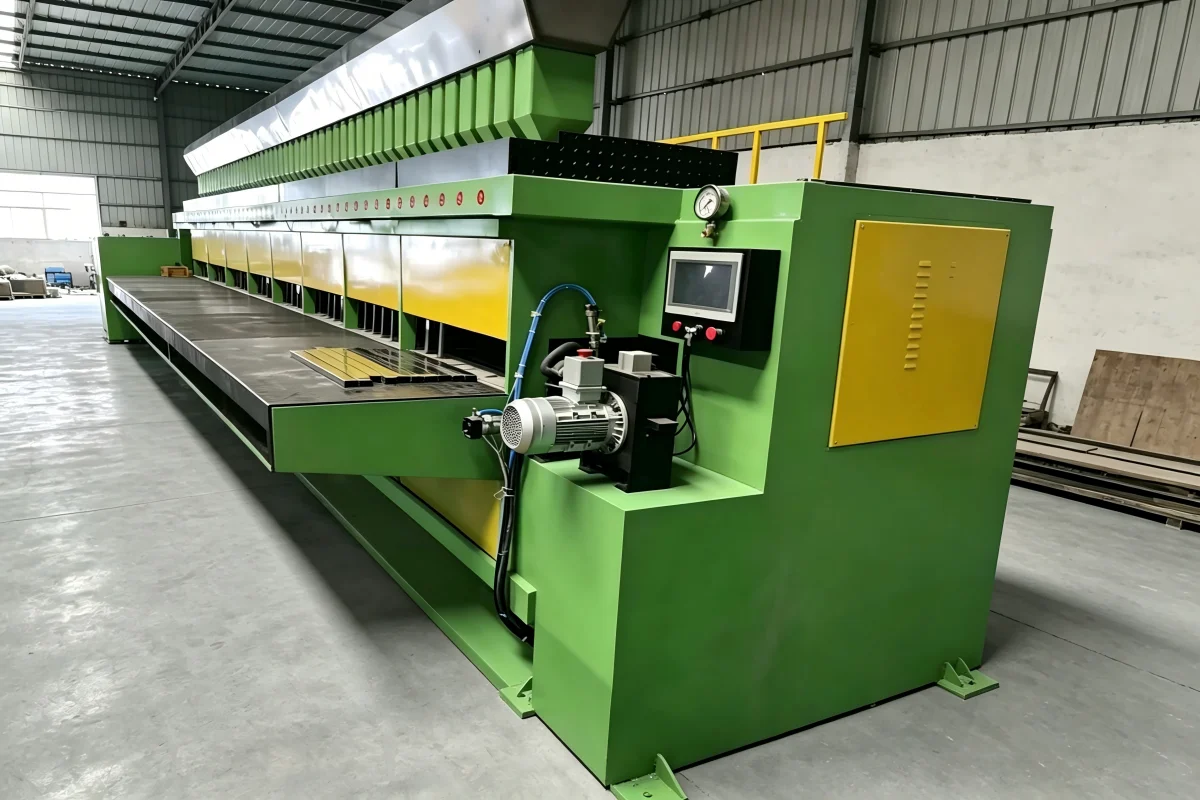

See the injection geogrid line in detail
See the injection geogrid line in action
Why the injection geogrid line is the industry choice
24 heads for high-speed production. Each head independently controlled.
Mitsubishi PLC ensures accurate positioning and repeatable weld quality.
Supports steel-plastic composite strips and PP strips.
5,000-15,000 m2/day with node strength at 90% of parent material.
Ultrasonic heating consumes less energy than thermal welding.
Ideal for PET geogrids where ultrasonic welding causes fiber damage. Zero fiber degradation at node points.
Where the injection geogrid line is used
Biaxial geogrids for road base reinforcement, extending pavement life and improving load distribution.
High-strength geogrids for retaining walls, steep slopes, and embankment stabilization.
Geogrid reinforcement for ports, railways, airports, and industrial yard construction.
Contact us for a customized quotation on the injection geogrid line.
